The Thermalright AXP90-53 Full Copper is engineered for high-efficiency thermal performance in small form factor (SFF) and ITX builds. With its fully copper construction and low-profile design, it’s the ideal solution for demanding users who need powerful cooling in limited space.
🔧 Key Features

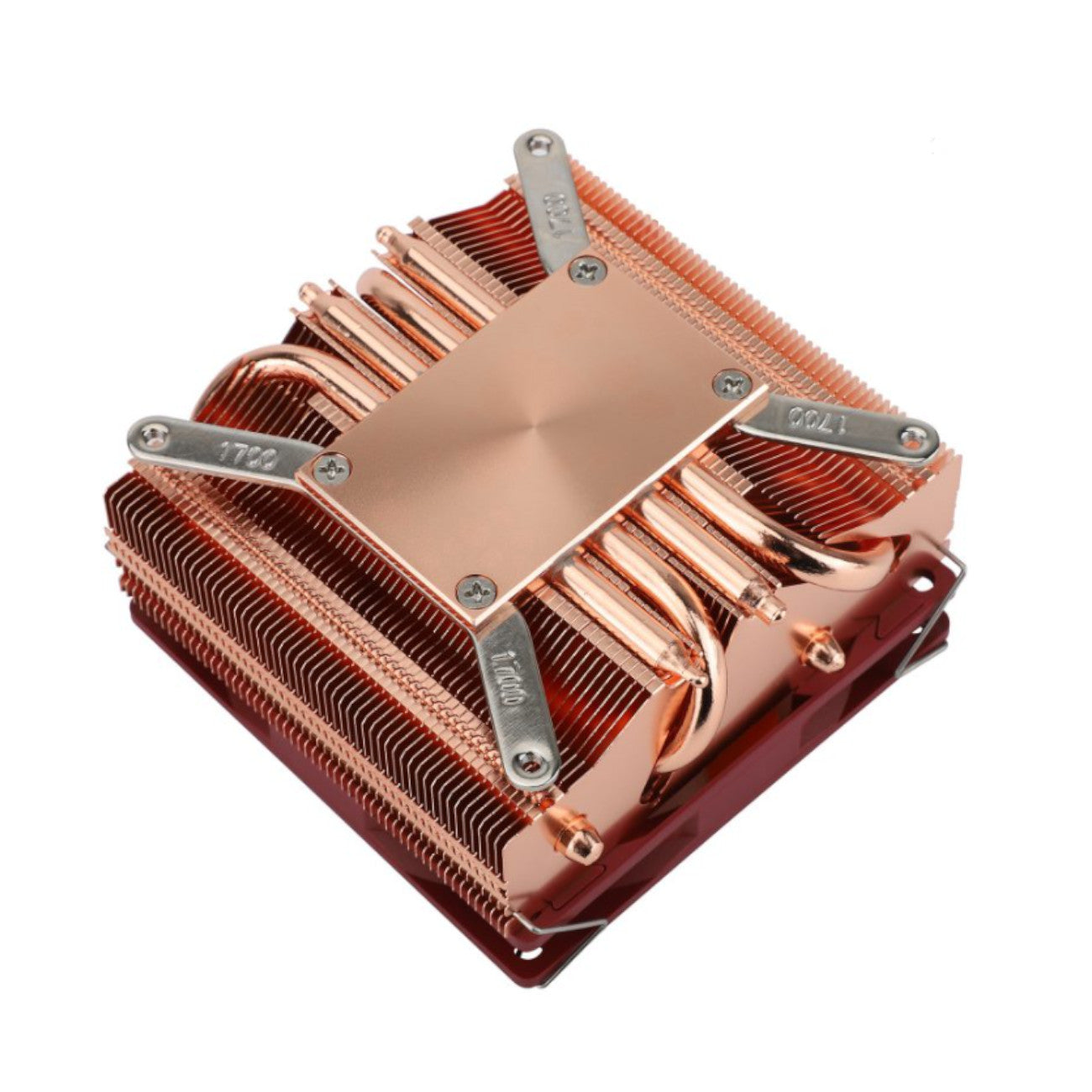

Fully Copper Construction Built with a pure C1100 copper base and nickel-plated finish for superior heat transfer and durability.

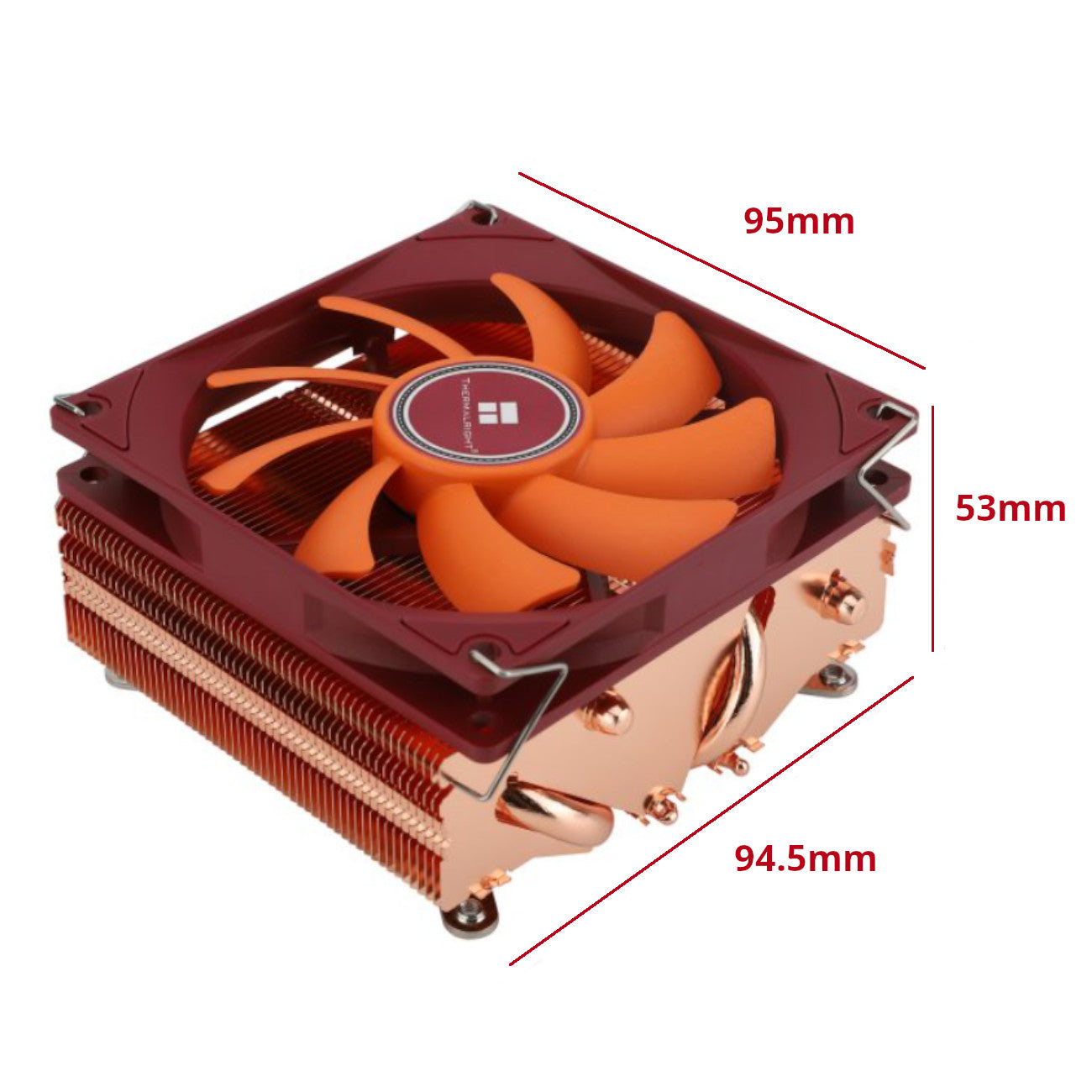

Ultra-Compact Size Just 53mm in total height — perfect for ITX cases and ultra-slim builds where space is limited.

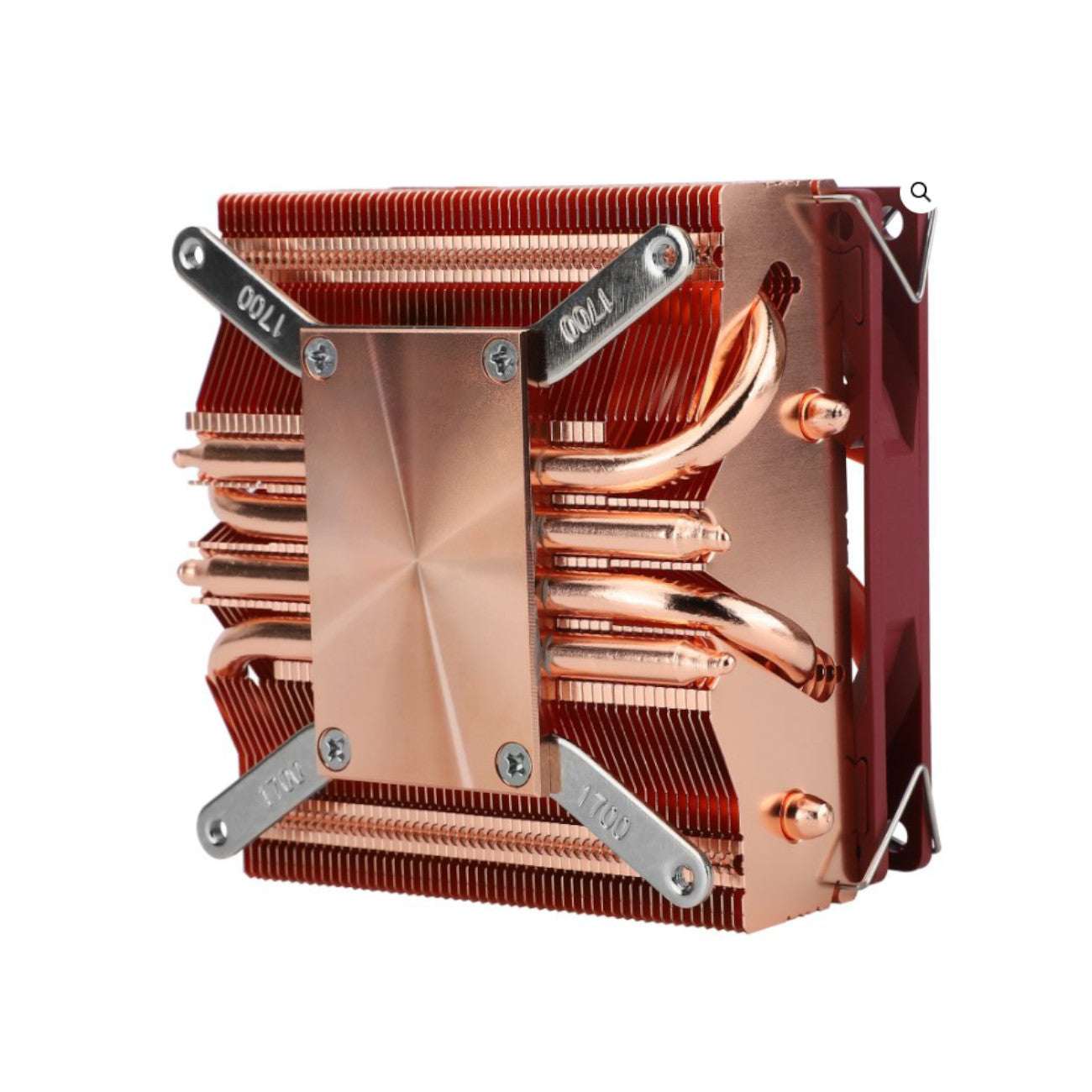

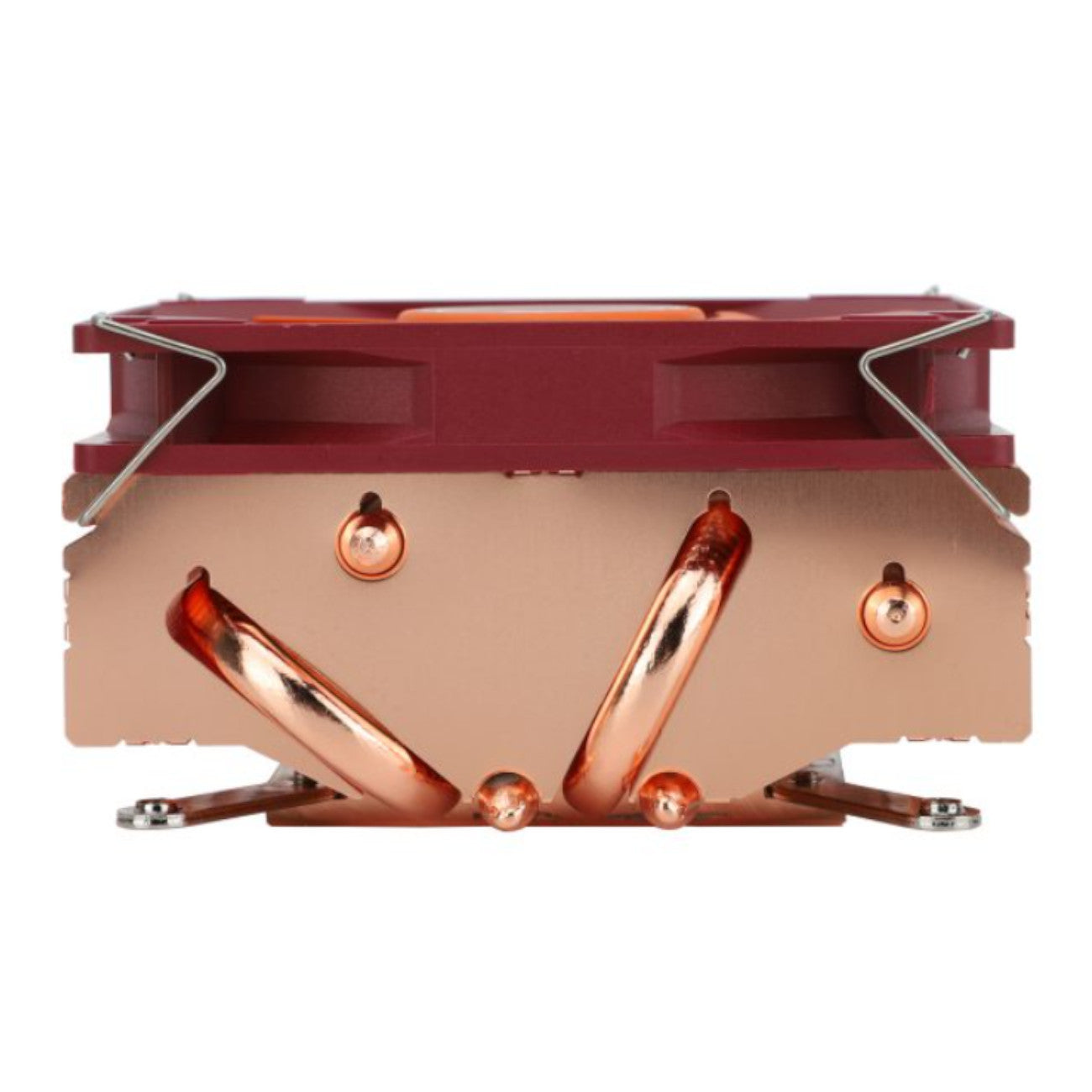

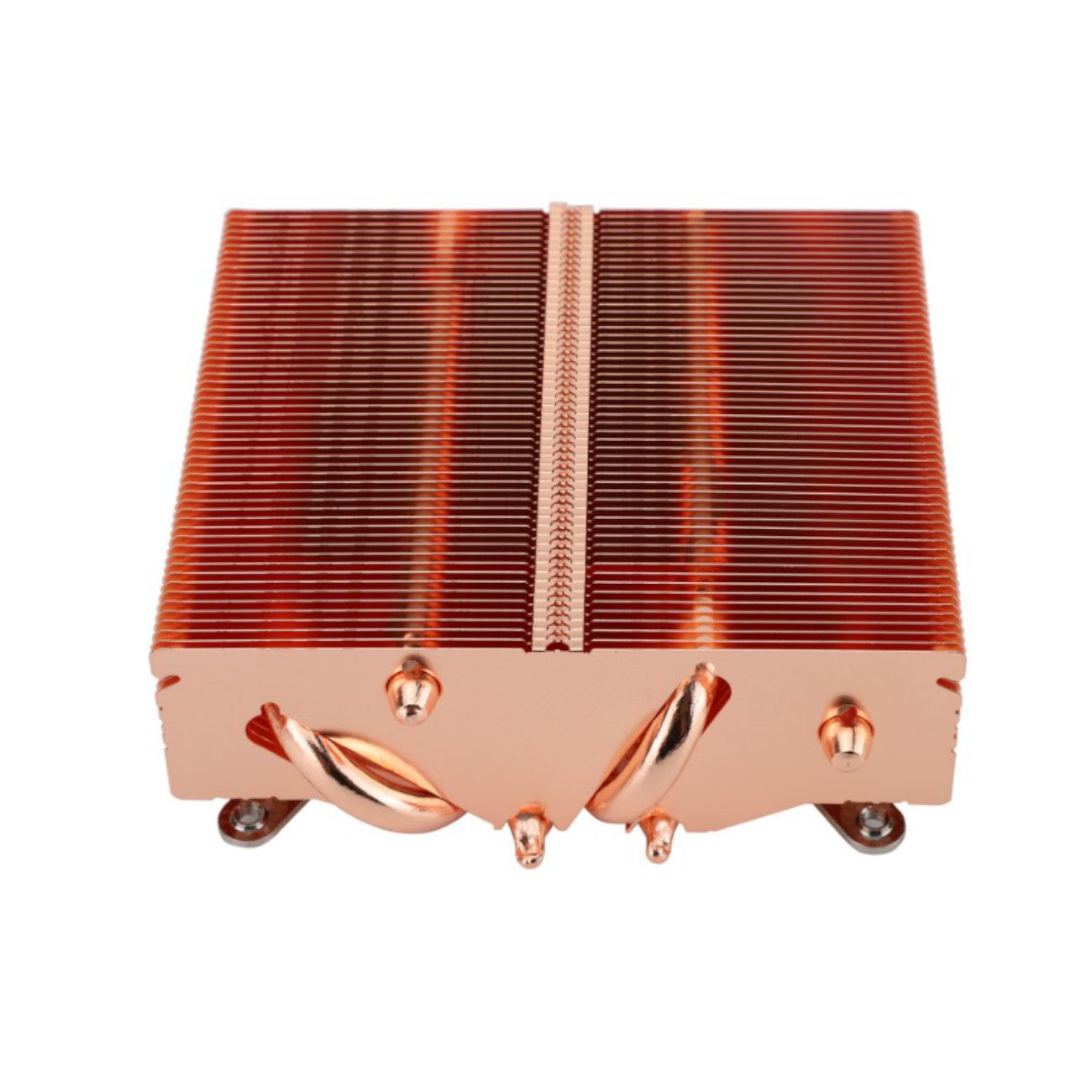

High-Efficiency Heatpipes Equipped with 4x 6mm copper heatpipes that quickly and evenly dissipate heat from the CPU.
Quiet & Effective Cooling Includes the TL-9015R 92mm fan, delivering up to 42.58 CFM airflow with minimal noise at only 22.4 dBA.
Smart PWM Fan Control Features a 4-pin PWM connector for automatic, efficient fan speed adjustment based on system load.
Solid Build Quality Heatsink weighs 540g (without fan) — built to perform with durability and thermal stability in mind.
📦 What’s in the Box
1x AXP90-53 Full Copper Heatsink
1x TL-9015R 92mm PWM Fan

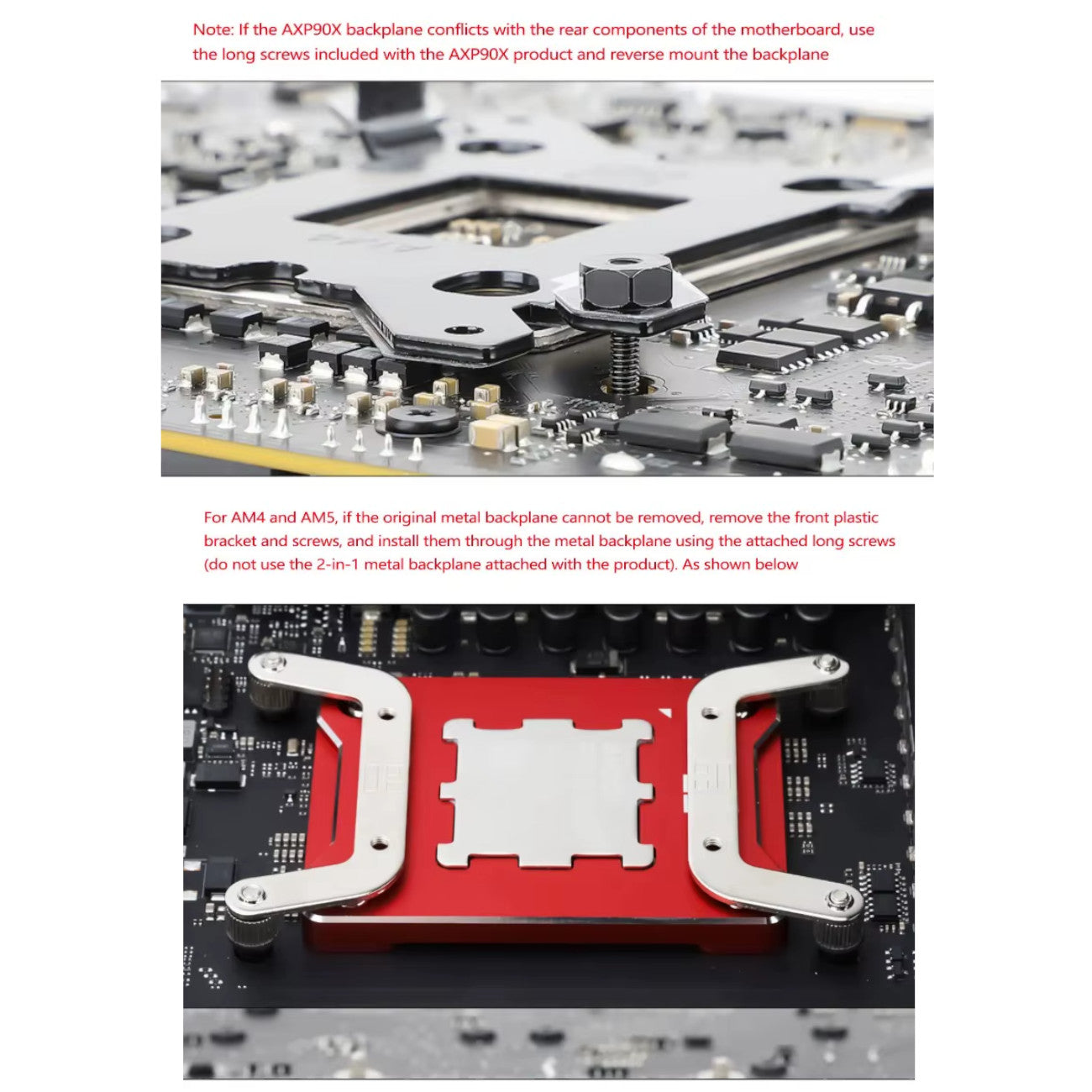

Mounting Kit (Compatible with Intel & AMD sockets)
